SCT3252 Digital Radio Baseband Signal Processor

Overview

SCT3252 is a highly integrated digital radio baseband signal processor designed by Sicomm.

Features

• Specialized Digital Radio IC:
• Support Multiple Protocols(DPMR, NDR)
• Support DPMR Tier 1, Tier 2
• Air interface Layer 1, Layer 2, Layer 3
• Full Annex A support
• Support Multiple Vocoders
• Build-in: ASELP(Tsinghua), AMBE +2C(DVSI),
• External vocoder option(e,g.AMBE3000)
• Support 1031 Hz Tone and Silence Test Mode
• Automatic vocoder switching at the receiver
• 4FSK Modem
• 4800 data rate
• Automatic frame sync detection
• Programmable modulation index
• Support two point modulation
• Analog Mode Support(auto switch,CTCSS/DCS etc)
• Premium Features
• Voice Recording and Playing back
• 16 / 64 / 192 bit voice encryption
• High performance, low power consumption
• Package 14x14mm LQFP100

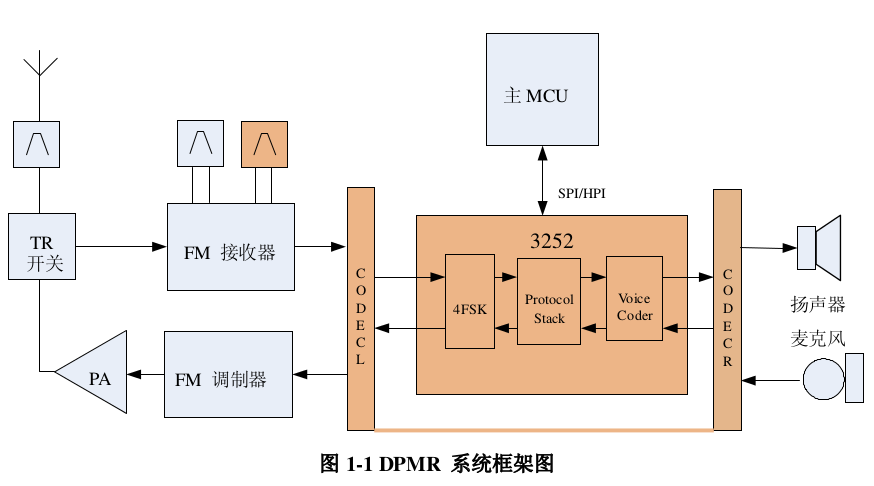

Block Diagram
